IM_3DMag_Lab generates and controls a wide variety of 3D magneticfields for precise actuation of your magnetic materials

System Capabilities
Constant magnetic field
Magnetic field gradient
Rotating magnetic field
Programmed magnetic field application
Current and temperature sensing in real time
Five-degree-of-freedom (5-DOF) magnetic control: 3-DOF in X, Y, Z translations and 2-DOF

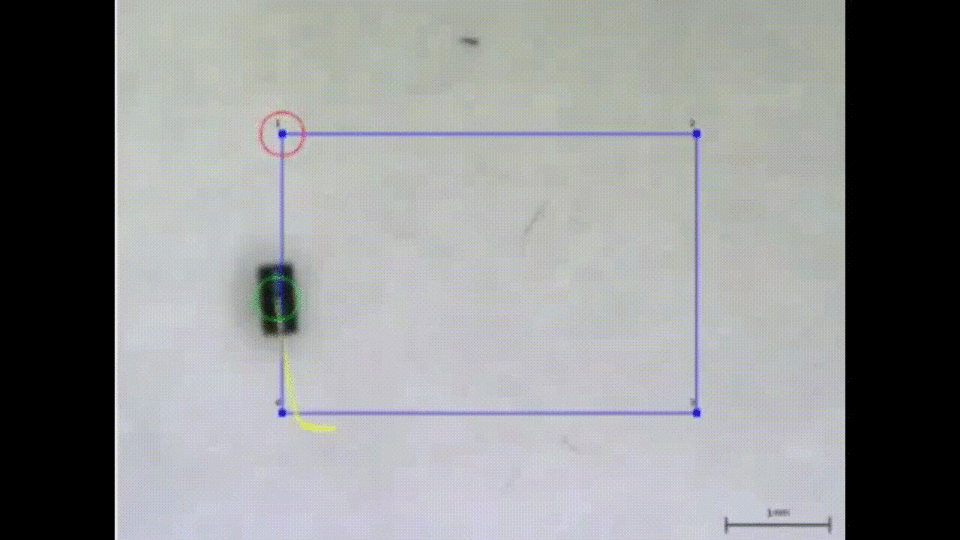

Active Manipulation of Magnetic Materials

Magnet

Microrobot
IM_3DMag_Lab Components.

Electromagnetic Coils
A 3D magnetic field is generated through electromagnetic induction

Graphical User Interface (GUI) Software
A user-friendly GUI software for control, visualization and navigation of magnetic materials

Electronic Control Box
Calculation and manipulation of electric currents are performed for real-time magnetic field control
